| Dimensions ( W x D x H ) |
125 × 48 × 23mm |
| Ports |
8× 10/100Mbps, Auto-Negotiation RJ45 ports |
| Interface |
Supports Auto-MDI/MDIX |
| Weight |
Approximately 140 grams |
| Standards |
IEEE 802.3i (10BASE-T) // IEEE 802.3u (100BASE-TX) // IEEE 802.3x (Flow Control) |
| Data Transfer Rate |
Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex) // Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) |
| MAC Address Table |
2,000 entries |
| Packet Buffer Memory |
768KB |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) // 100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
| Jumbo Frame |
2,048 bytes |
| Certification |
CE, FCC, RoHS |
| Advanced Features |
Green Technology: IEEE 802.3az Energy-Efficient Ethernet // Supports 802.1p/DSCP QoS // Flow Control: IEEE 802.3x flow control for Full Duplex mode // Backpressure for Half Duplex mode // Transfer Method: Store and Forward |
| Operating Temperature |
0℃~40℃ |
| Storage Temperature |
-40℃~70℃ |
| Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
| Power Consumption |
2.64W // External Power Adapter (Output: 5VDC/0.6A) |
| Package Contents |

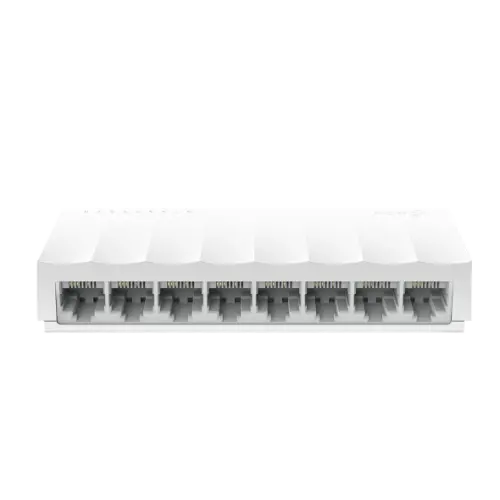

TL-LS1008 8-Port 10/100Mbps Desktop Switch // Power Adapter // Quick Installation Guide |
