🆔 Model:

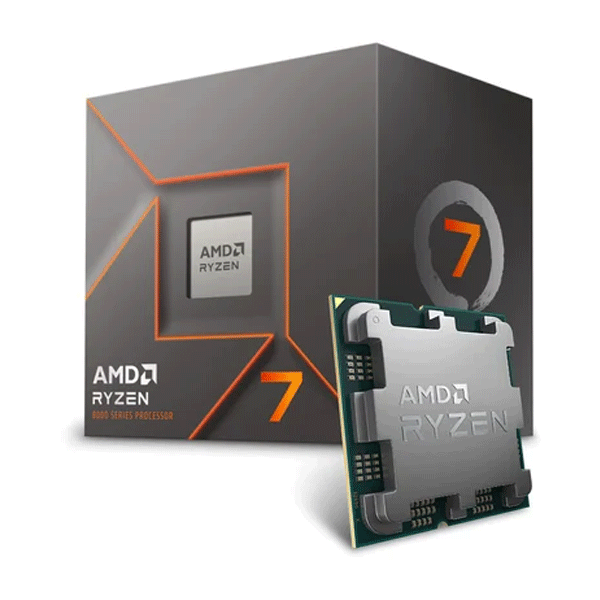

1. AMD Ryzen™ 7 8700F Processor
2. Product Code: 100-100001590MPK
3. Series: Ryzen 8000 Series
4. Architecture: Zen 4 (TSMC 4nm FinFET)

———————————————————————-

⚙️ Core Specs:

1. Cores / Threads: 8 Cores – 16 Threads
2. SMT (Multithreading): Supported
3. Base Clock: 4.1 GHz
4. Boost Clock: Up to 5.0 GHz
5. L2 Cache: 8 MB
6. L3 Cache: 16 MB
7. Package Die Count: 1
8. CPU Socket: AM5
9. Set: x86-64
10. Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX+, SHA, SSE (1,2,3,4.1, 4.2, 4A), SSSE3

———————————————————————-

🎨 Graphics & AI:

1. Integrated Graphics: Not Included (Discrete GPU Required)
2. AMD Ryzen™ AI: Yes – Up to 16 TOPS (Trillions of Operations Per Second)
3. SmartAccess Memory: Available

———————————————————————-

🔋 Power & Thermals:

1. Default TDP: 65W
2. Configurable TDP (cTDP): 45–65W
3. Max Operating Temp: 95°C
4. Overclocking: AMD EXPO™ Technology Supported

———————————————————————-

🧠 Memory Support:

1. Type: DDR5 UDIMM
2. Max Capacity: 256 GB
3. Channels: Dual (2)
4. Speeds Supported: 2x1R DDR5-5200 / 2x2R DDR5-5200 / 4x1R DDR5-3600 / 4x2R DDR5-3600

———————————————————————-

🔌 Connectivity:

1. PCIe Version: PCIe® 4.0
2. PCIe Lanes (Total / Usable): 20 / 16
3. USB Ports: 2 × USB 4 (40Gbps) / 2 × USB 3.2 Gen 2 (10Gbps) / 1 × USB 2.0 (480Mbps)
4. NVMe Support: Boot / RAID 0 / RAID 1

———————————————————————-

💻 Operating System Compatibility:

1. Windows 11 / 10 (64-bit) // Ubuntu (x86-64) // RHEL (x86-64)

———————————————————————-

🔧 Advanced Features:

1. Precision Boost 2
2. Precision Boost Overdrive
3. Curve Optimizer Support
4. AMD Ryzen™ Master Support
5. Unlocked for Overclocking
6. Enhanced Virus Protection (NX Bit)
