| Graphic Engine |

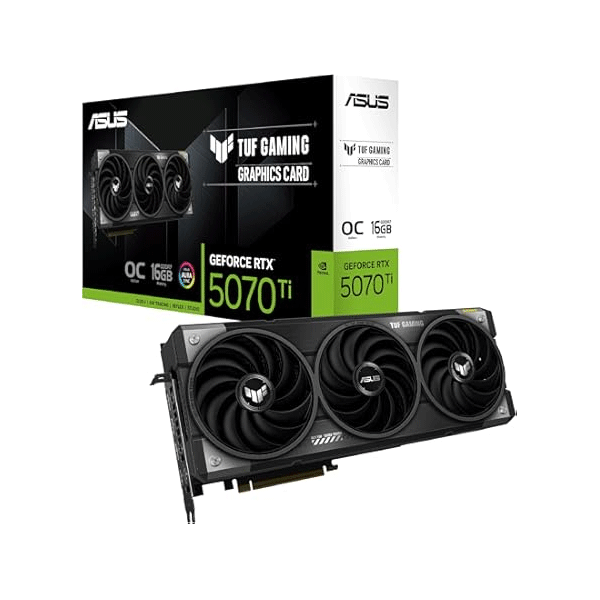

NVIDIA® GeForce RTX™ 5070 Ti |
| Bus Standard |
PCI Express 5.0 |
| DirectX |
DirectX 12 API |
| OpenGL |
OpenGL®4.6 |
| AI Performance |
1406 TOPs |
| Video Memory |
16GB GDDR7 |
| Engine Clock |
OC mode: 2482MHz // Default mode: 2452MHz (Boost Clock) |
| CUDA Core |
8960 |
| Memory Speed |
28 Gbps |
| Memory Interface |
256-bit |
| Memory Bandwidth |
627 GB/s |
| Resolution |
Digital Max Resolution 7680 x 4320 |
| Interface |
Yes x 1 (Native HDMI 2.1b) // Yes x 3 (Native DisplayPort 2.1b) // HDCP Support Yes (2.3) |
| NVlink/ Crossfire Support |
No |
| Maximum Display Support |
4 |
| Accessories |
1 x Speedsetup Manual // 1 x ASUS Velcro Hook & Loop // 1 x Thank You Card // 1 x Adapter Cable (1 to 3) |
| PCB Form |
ATX |
| Dimensions(WxHxL) |
304 x 126 x 50 mm |
| Recommended PSU |
750W |
| Power Connectors |
16 Pin*1 |
| Slot |
2.5 Slot |
| Software |
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| SFF Ready |
Compatible |
