| Model: |

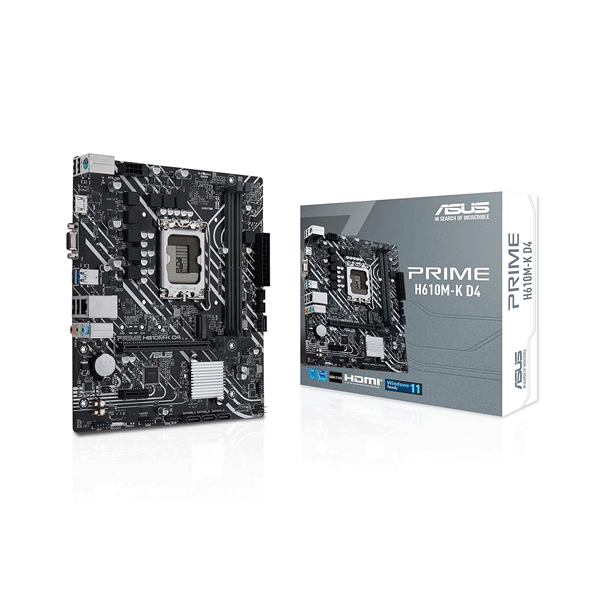

PRIME H610M-K D4 |
| Product Number: |
90MB1A10-M0EAY0 |
| CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors // Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset |
Intel® H610 Chipset |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| Operating System |
Windows® 11, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
| Manageability |
WOL by PME, PXE |
| Memory |
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* //Dual Channel Memory Architecture // Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots |
Intel® Core™ Processors (14th & 13th & 12th Gen)* // 1 x PCIe 4.0 x16 slot // Intel® H610 Chipset // 1 x PCIe 3.0 x1 slot |
| Graphics |
1 x DisplayPort** // 1 x HDMI™ port*** // * Graphics specifications may vary between CPU types.** Supports 4K@60Hz as specified in HDMI 2.1. |
| Storage |
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) – 4 x SATA 6Gb/s ports // * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. |
| USB |
Rear USB (Total 6 ports): 2 x USB 3.2 Gen 1 ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) // Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports – 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Back Panel I/O Ports |
2 x USB 3.2 Gen 1 ports (2 x Type-A) // 4 x USB 2.0 ports (4 x Type-A) // 1 x D-Sub port // 1 x HDMI® port // 1 x Realtek 1Gb Ethernet port // 3 x Audio jacks // 1 x PS/2 Keyboard/Mouse combo port |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback // Audio Features: Audio Shielding – Dedicated audio PCB layers // * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Accessories |
Cables 2 x SATA 6Gb/s cables // Miscellaneous: 1 x I/O Shield – 1 x M.2 ANCHOR // Installation Media: 1 x Support DVD // Documentation 1 x User guide |
| Internal I/O Connectors |
Fan and Cooling related: 1 x 4-pin CPU Fan header – 1 x 4-pin Chassis Fan header // Power related: 1 x 24-pin Main Power connector – 1 x 8-pin +12V Power connector // Storage related: 1 x M.2 slot (Key M) – 4 x SATA 6Gb/s ports // USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports – 1 x USB 2.0 header supports additional 2 USB 2.0 ports // Miscellaneous: 1 x RGB header – 1 x Clear CMOS header – 1 x COM Port header – 1 x Front Panel Audio header (AAFP) – 1 x S/PDIF Out header – 1 x Speaker header – 1 x SPI TPM header (14-1pin) – 1 x 10-1 pin System Panel header |
| Special Features |
ASUS 5X PROTECTION III // DIGI+ VRM // LANGuard // Overvoltage Protection // SafeSlot Core // Stainless-Steel Back I/O // ASUS Q-Design // Q-DIMM // Q-LED Core // Q-Slot // ASUS Thermal Solution Aluminum heatsink design // Aura Sync // Aura RGB header // Addressable Gen 2 headers |
| Software Features |
ASUS Exclusive Software: Armoury Crate – AI Suite 3 // Performance And Power Saving Utility: TurboV EVO – EPU – DIGI+ VRM – Fan Xpert – ASUS CPU-Z – Norton Anti-virus software (Free Trial version) – WinRAR // UEFI BIOS: ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| Ethernet |
1 x Realtek 1Gb Ethernet |
