🖥️ Model:

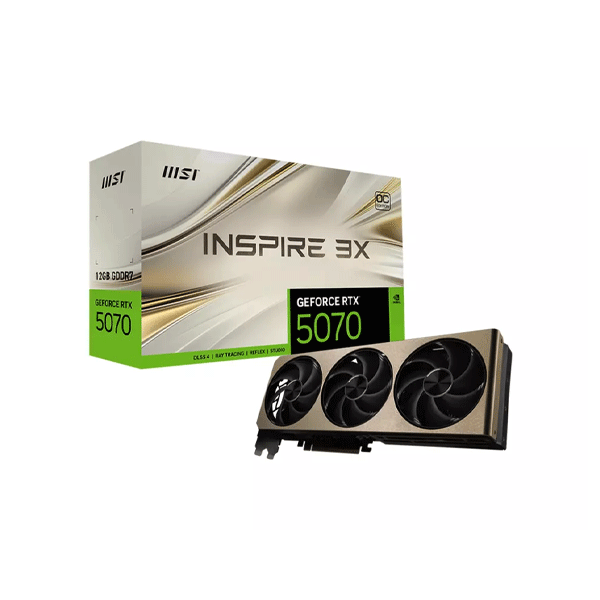

1. MSI GeForce RTX™ 5070 12G INSPIRE 3X OC
2. model number:G5070-12I3C

———————————————————————-

🔧 Core Specifications:

1. Graphics Engine: NVIDIA® GeForce RTX™ 5070
2. CUDA Cores: 6144 Units
3. Base Clock: 2325 MHz
4. Boost Clock: Extreme Performance: 2557 MHz (MSI Center) // Boost: 2542 MHz
5. Tensor Compute Performance: FP16 (half): 31.24 TFLOPS (1:1) // FP32 (float): 31.24 TFLOPS // FP64 (double): 488.1 GFLOPS (1:64)

———————————————————————-

🎮 API & Graphics Support:

1. Bus Interface: PCI Express 5.0
2. DirectX: DirectX 12 Ultimate
3. OpenGL: OpenGL 4.6
4. Vulkan: Vulkan API Version 1.4

———————————————————————-

💾 Memory:

1. Memory Size: 12GB GDDR7
2. Effective Memory Speed: 28 Gbps
3. Memory Clock: 1750 MHz
4. Memory Interface: 196-bit
5. Memory Bandwidth: 672.0 GB/s

———————————————————————-

🖼️ Display Output & Resolution:

1. Maximum Digital Resolution: 7680 × 4320(8K UHD)
2. Supported Outputs: DisplayPort x 3 (v2.1b) // HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
3. Maximum Simultaneous Displays: 4
4. Multi-GPU Support (NVLink/Crossfire): ❌ Not Supported
5. G-SYNC® technology: Yes

———————————————————————-

🧰 Form Factor & Power:

1. PCB Form: ATX
2. Dimensions (L × H × W): 288 x 112 x 50 mm
3. Weight: 914 g
4. Slot Size: Dual-Slot (2-Slot)
5. Power Connectors: 16-pin x 1 (ATX 3.1 PSU recommended)
6. Recommended PSU: 650W
